Feature
1. Three-cutter, Longevity.
2. The life span is four times more than the tranditional 2 cutter drill bits.
3. The 5.8mm drill bits can drill 1,000 holes at concrete strength 10000 psi.
4. Drilling through deck board and edge of the rebar.
5. Fast application.
6. Drilling and screwing in one.
7. Designed for SDS-Plus hammer drill.
Special Design
Advantage 1
Special Design - Special three-cutter designed to CUT. Sustainable special design resistant to breakage.
Inserted Type - Narrow width of the cutter on inserted type deteriorate wear.
Advantage 2
Special Design - 25% dust-removal efficiency enhanced.
Inserted Type - Narrow channel of dust removal of inserted type drill bit.

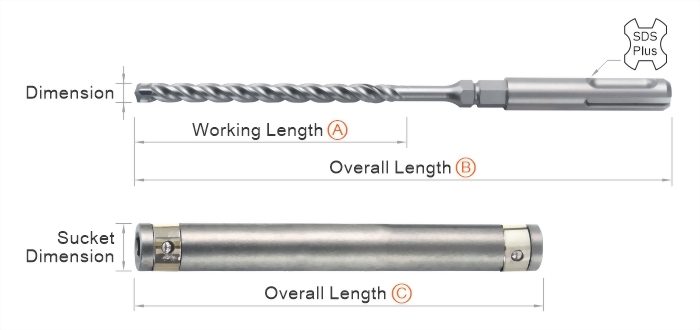

Specification
|
Hole Diameter |
Product Code |
Working Length Ⓐ |
Overall Length Ⓑ |
Shank Type |
|
5/32 |
SK-5/32-100 |
100 |
182 |
SDS-Plus |
|
3/16 |
SK-3/16-100 |
100 |
182 |
SDS-Plus |
|
1/4 |
SK-1/4-100 |
100 |
182 |
SDS-Plus |
|
M6 |
SK-M6-80-3Cutter |
80 |
161 |
SDS-Plus |
|
5.8 |
SK-5.8-80 |
80 |
161 |
SDS-Plus |
|
7.4 |
SK-7.4-80 |
80 |
161 |
SDS-Plus |
|
Sucket Dimension |
Product Code |
Overall Length Ⓒ |
|
inch |
SK-inch-120 |
146 |
|
5.8 |
SK-5.8-120 |
120 |
|
7.4 |
SK-7.4-120 |
120 |

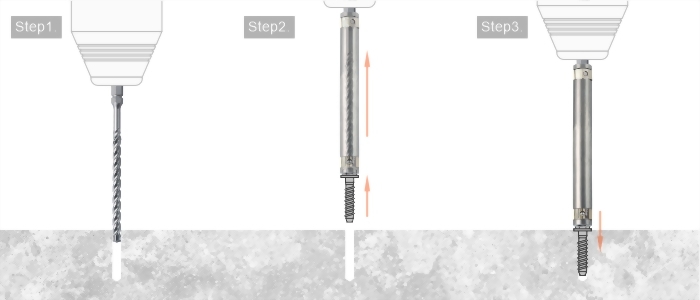

Applications
Step 1. Drilling
Step 2. Put on sucket and then screw on the other side
Step 3. Turn on drill to screw in
Attention
Use slow mode of the tool
Use hammering mode when drilling
Use rotary mode when screwing
