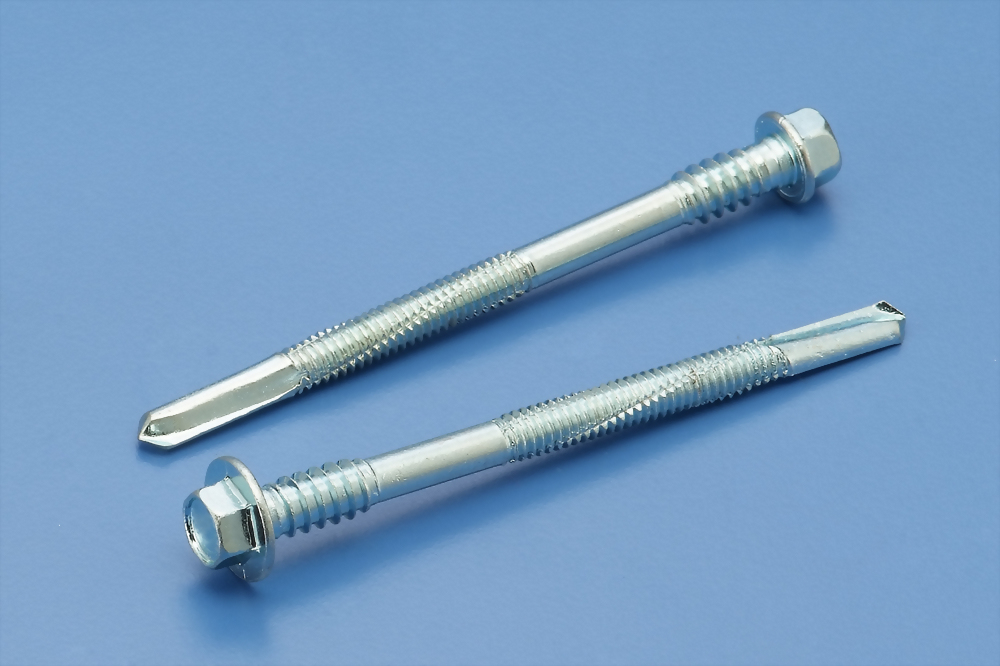

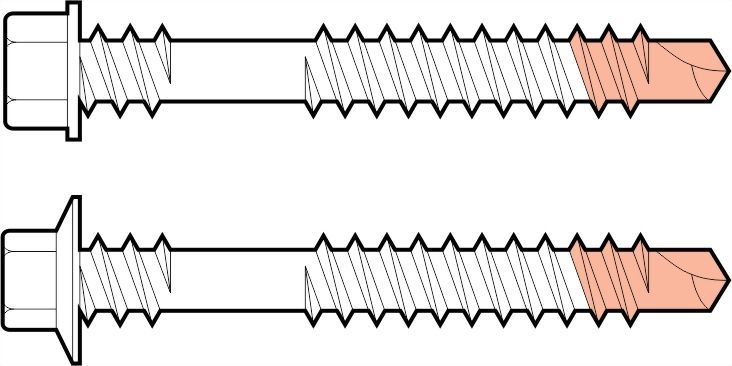

Bi-metal screws (Imperial)Bi-Metal Sandwich Panel Screw
Austenitic Stainless Steel SUS A2-302 / A2-304 / A4-316
Swipe to view full specification →
| Diameter Size | Length | Point Size | Max Drilling Capacity (mm) | Drive Speed (R.P.M) | |
|---|---|---|---|---|---|
| min | max | ||||
| Ø5.5/4.8 | 50 | 300 | #1 | 1+1 | 1800-2500 |
| Ø6.3/5.5 | 50 | 300 | #1 | 1+1 | 1800-2500 |
| Ø7.0/6.3 | 50 | 300 | #1 | 1+1 | 1800-2500 |
| Ø5.5/4.8 | 50 | 300 | #2 | 3 | 1800-2500 |
| Ø6.3/5.5 | 50 | 300 | #2 | 3 | 1800-2500 |
| Ø7.0/6.3 | 50 | 300 | #2 | 3 | 1800-2500 |
| Ø5.5/4.8 | 50 | 300 | #3 | 6 | 1800-2500 |
| Ø6.3/5.5 | 50 | 300 | #3 | 6 | 1800-2500 |
| Ø7.0/6.3 | 50 | 300 | #3 | 6 | 1000-1800 |
| Ø6.3/5.5 | 63 | 300 | #5 | 12.5 | 1000-1800 |
| Ø7.0/6.3 | 63 | 300 | #5 | 12.5 | 1000-1800 |
