Three-cutter SDS-MAX Hammer Drill Bit
With a design of an angle of 120 degrees the full-tungsten-carbide tip guarantees durability, longevity and efficiency.

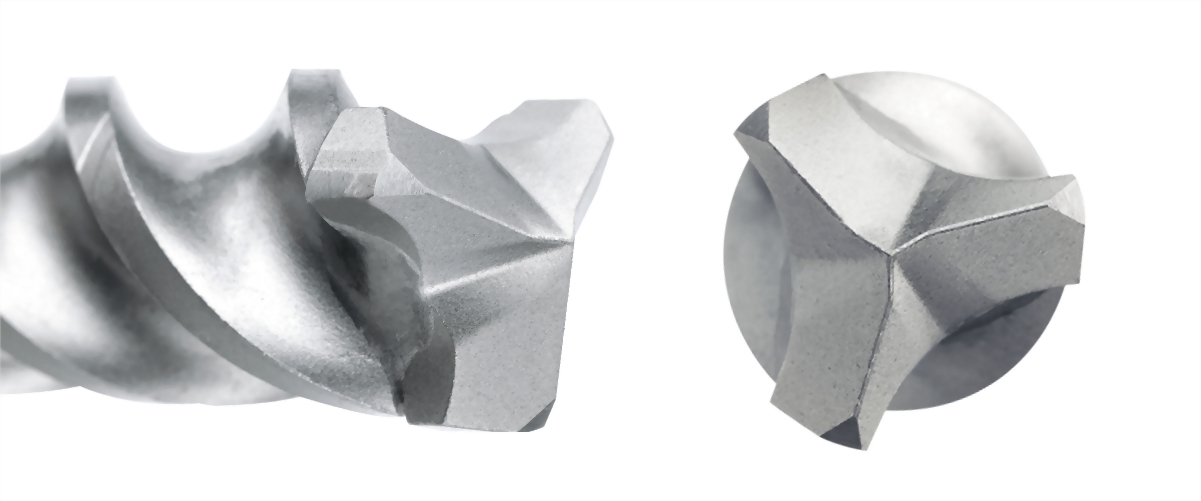

Special Tip Design
A three-cutter full-tungsten-carbide design is utterly sustainable to hammering.Wear of the tip during application is much smaller than traditional inserted type of drill bit.
With a design of an angle of 120 degrees the full-tungsten-carbide tip guarantees durability, longevity and efficiency.

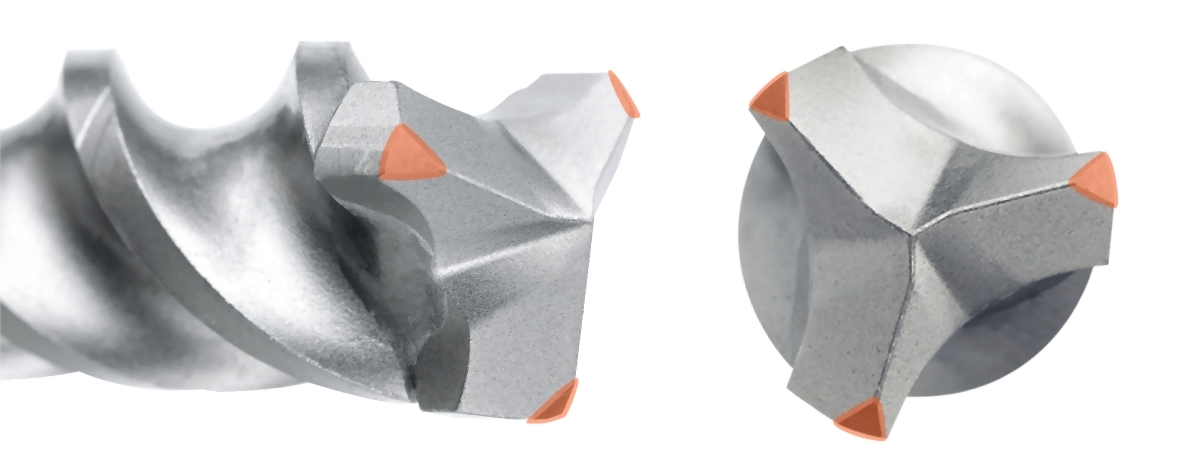

Special chamfer design
The chamfer design has significantly enhanced the safety by reducing the tremble caused by rebar contact.Special three-cutter with a chamfer design
Stable drilling
A stable drilling reduces chances of getting stuck and rebound and therefore lightens the burden on a worker.
Specification
|
Dimension |
Working Length (Unit: mm) |
Overall Length |
|||||||||||||||
|
Metric (M) ANSI |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
750 |
800 |
850 |
|
|
Quantity: 1 pcs |
|||||||||||||||||
|
M12 |
|
|
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
Working Length +150mm |
|
M13 |
|
|
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
|
M14 |
|
|
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
|
M15 |
|
|
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
|
M16 |
|
|
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
|
M16.5 |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
|
M18 |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
|
M20 |
|
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
○ |
|
