sk-drillbit-metric.pdfFeatures
Special alloy tip, impact resistance.
Remove most mud and dust caused by drilling.
Save cleaning time after drilling.
Specification: SDS-Plus
|
Dimension |
Working Length(unit: mm) |
Overall Length |
Shank Type |
|
|
Metric(M) ANSI |
100 |
200 |
||
|
M06 |
◯ |
- |
Working Length +120mm |
SDS-Plus |
|
M08 |
◯ |
- |
||
|
M10 |
◯ |
- |
||
|
M12 |
- |
◯ |
||
|
M14 |
- |
◯ |
||
|
M16 |
- |
◯ |
||

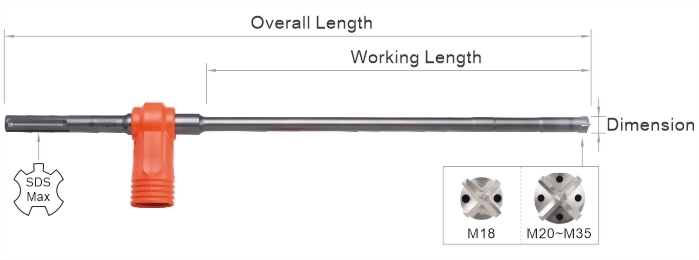

Specification: SDS-Max
|
Dimension |
Working Length (unit: mm) |
Overall Length |
Shank Type |
|
|
Metric(M) ANSI |
200 |
400 |
||
|
M18 |
◯ |
- |
Working Length +200mm |
SDS-Max |
|
M20 |
◯ |
- |
||
|
M22 |
- |
◯ |
||
|
M24 |
- |
◯ |
||
|
M26 |
- |
◯ |
||
|
M28 |
- |
◯ |
||
|
M30 |
- |
◯ |
||
|
M32 |
- |
◯ |
||
|
M35 |
- |
◯ |
||
Application
1. Suitable for drilling of various concrete.
2. Suitable for pre-drilling operations with anchor bolts.
3. Interior decoration or water and electricity pipelines.
4. Anchorage engineering.
