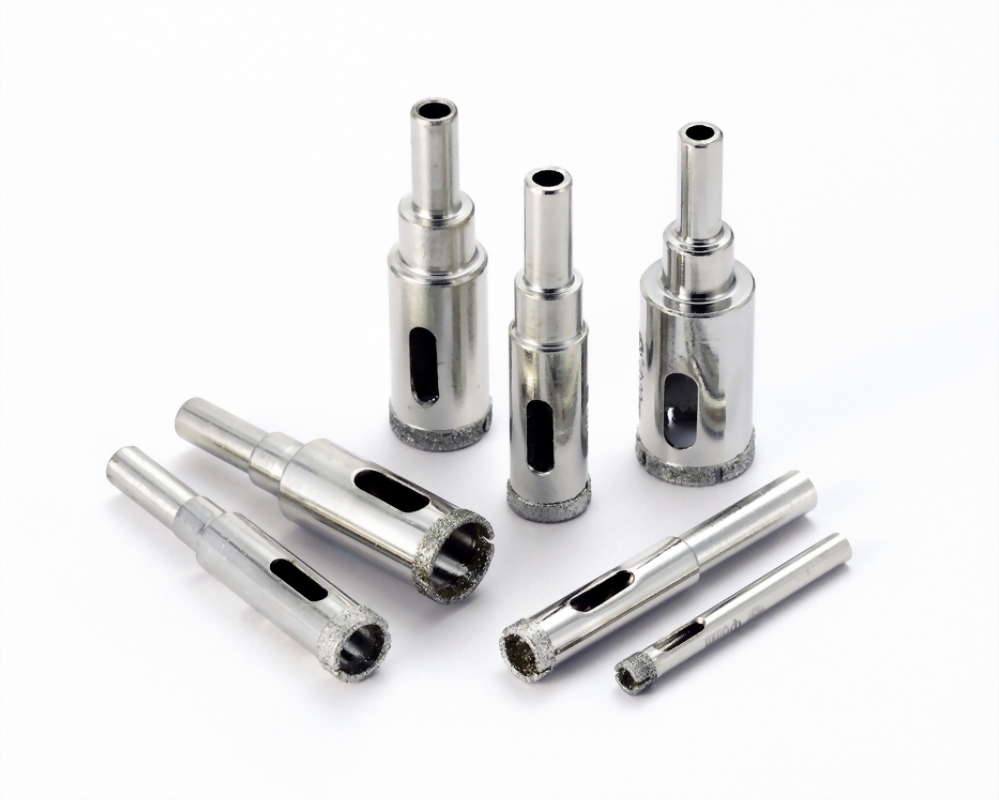

Feature
Special drill bits for stone and glass. It can drill, cut and polish quartz brick, ceramics, marbles, and tiles.
Dry cutting.
Smooth and steady cutting, flatness of the incision after cutting, no chipping etc. Diamond drills are super durable. Hi-drilling speed, long life. It has good design for excellent dust removal.
Apply to smooth and hard stone, glass or tiles. Cutting edge and diamond particles.

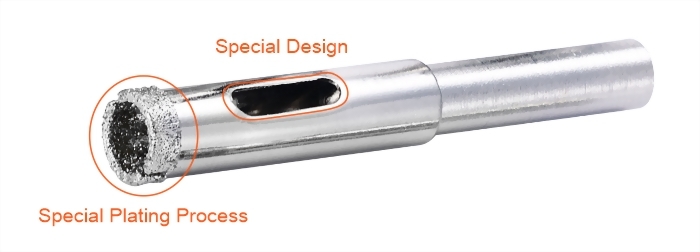

Special Plating Process and Special Design
Special plating process ensures the diamond is firmly attached along with the circumference. Long life time. The diamond drill is outstanding and excellent drilling performance.
Special Design of Diamond Drill Bits-Automatic water inlet cooling design
Specification (unit: mm)
|
Dimension ±0.2 |
Shank Diameter ±0.2 |
Overall Length ±1 |
|
4 |
3.5 |
50 |
|
5 |
4.5 |
50 |
|
6 |
5.3 |
50 |
|
8 |
7.2 |
65 |
|
Dimension ±0.2 |
Shank Diameter ±0.2 |
Working Length ±1 |
Overall Length ±1 |
|
10 |
8 |
36 |
65 |
|
12 |
8 |
38 |
65 |
|
14 |
8 |
36 |
65 |
|
16 |
8 |
36 |
65 |
|
18 |
8 |
36 |
65 |
|
20 |
8 |
36 |
66 |
Life Span of Ø6 Diamond Drill Bit-Drill in 10mm thick board
|
Material |
Marble |
Granite |
Quartz Brick |
Wall Tiles |
Glass |
|
Drilling Holes (approx.) |
10 |
10 |
10 |
30 |
30 |
Application-Example of Case
|
|
|
|
|
29.5 mm thick granite |
8 mm thick glass |
9.5 mm thick wall tile |
Attention
Slow down the drilling speed
Turn off vibration mode
Need water while drilling
Add more water will be better
